Kategorija izdelka: SAE 37 deg
Material: ogljikovo jeklo, nerjavno jeklo ali bakrene zlitine

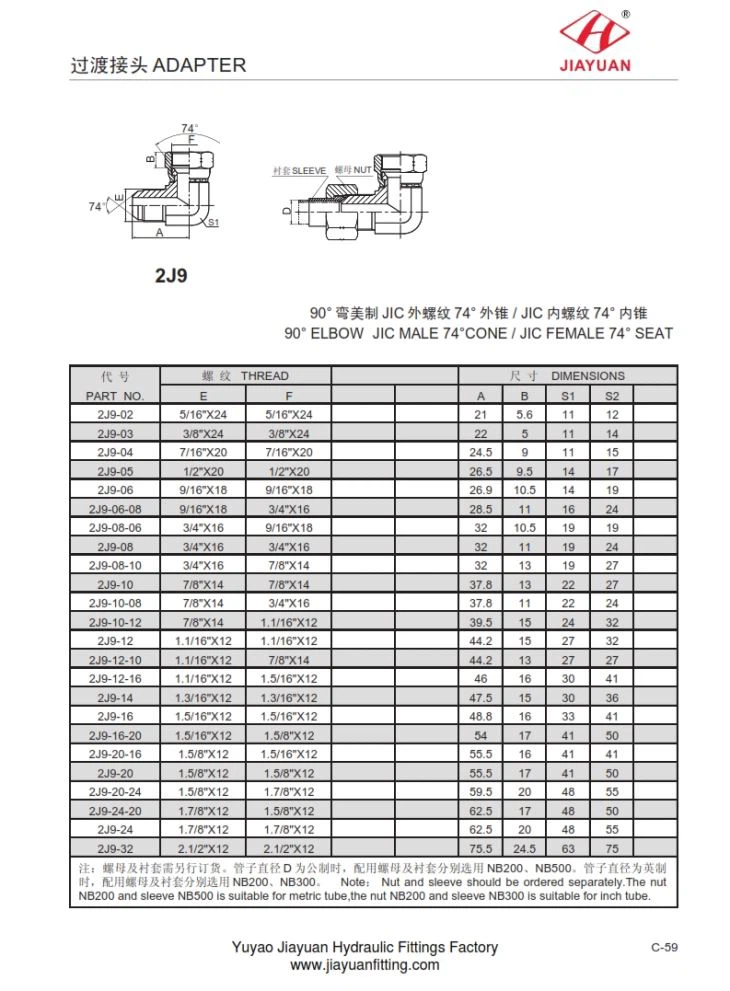

2J9 90 ° ELBOW JIC MALE 74 ° CONE / JIC ŽENSKO 74 ° SEDEŽ Dimenzijski grafikon:
PA RT N O. | T HR EA D | DIM E N S I O NS | |||||
E | F | A | B | S 1 | S 2 | ||
2 J 9 - 02 | 5/16 " X 24 | 5/16 " X 24 | 21 | 5.6 | 11 | 12 | |
2 J 9 - 03 | 3/8 " X 24 | 3/8 " X 24 | 22 | 5 | 11 | 14 | |
2 J 9 - 04 | 7/16 " X 20 | 7/16 " X 20 | 24.5 | 9 | 11 | 15 | |
2 J 9 - 05 | 1/2 " X 20 | 1/2 " X 20 | 26.5 | 9.5 | 14 | 17 | |
2 J 9 - 06 | 9/16 " X 18 | 9/16 " X 18 | 26.9 | 10.5 | 14 | 19 | |
2 J 9 - 06. 08 | 9/16 " X 18 | 3/4 " X 16 | 28.5 | 11 | 16 | 24 | |
2 J 9 - 08 - 06 | 3/4 " X 16 | 9/16 " X 18 | 32 | 10.5 | 19 | 19 | |
2 J 9 - 08 | 3/4 " X 16 | 3/4 " X 16 | 32 | 11 | 19 | 24 | |
2 J 9 - 08 - 10 | 3/4 " X 16 | 7/8 " X 14 | 32 | 13 | 19 | 27 | |
2 J 9 - 10 | 7/8 " X 14 | 7/8 " X 14 | 37.8 | 13 | 22 | 27 | |
2 J 9 - 10 - 08 | 7/8 " X 14 | 3/4 " X 16 | 37.8 | 11 | 22 | 24 | |
2 J 9 - 10 - 12 | 7/8 " X 14 | 1,1 / 16 " X 12 | 39.5 | 15 | 24 | 32 | |
2 J 9 - 12 | 1,1 / 16 " X 12 | 1,1 / 16 " X 12 | 44.2 | 15 | 27 | 32 | |
2 J 9 - 12 - 10 | 1,1 / 16 " X 12 | 7/8 " X 14 | 44.2 | 13 | 27 | 27 | |
2 J 9 - 12 - 16 | 1,1 / 16 " X 12 | 1,5 / 16 " X 12 | 46 | 16 | 30 | 41 | |
2 J 9 - 14 | 1,3 / 16 " X 12 | 1,3 / 16 " X 12 | 47.5 | 15 | 30 | 36 | |
2 J 9-16 | 1,5 / 16 " X 12 | 1,5 / 16 " X 12 | 48.8 | 16 | 33 | 41 | |
2 J 9 - 16 - 20 | 1,5 / 16 " X 12 | 1,5 / 8 " X 12 | 54 | 17 | 41 | 50 | |
2 J 9 - 20 - 16 | 1,5 / 8 " X 12 | 1,5 / 16 " X 12 | 55.5 | 16 | 41 | 41 | |
2 J 9–20 | 1,5 / 8 " X 12 | 1,5 / 8 " X 12 | 55.5 | 17 | 41 | 50 | |
2 J 9 - 20 - 24 | 1,5 / 8 " X 12 | 1,7 / 8 " X 12 | 59.5 | 20 | 48 | 55 | |
2 J 9 - 24 - 20 | 1,7 / 8 " X 12 | 1,5 / 8 " X 12 | 62.5 | 17 | 48 | 50 | |
2 J 9 - 24 | 1,7 / 8 " X 12 | 1,7 / 8 " X 12 | 62.5 | 20 | 48 | 55 | |
2 J 9 - 32 | 2,1 / 2 " X 12 | 2,1 / 2 " X 12 | 75.5 | 24.5 | 63 | 75 | |
