Včasih se imenuje tudi National Pipe Thread, NPTF (F for Fuel), Ameriški standardni konus ali preprosto "pipe".
Vrste adapterjev NPT: moški ali ženski adapter
Standard izdelka: ISO 11926-3, SAE J514 in BS 5200
Grafikon velikosti NPT adapterjev je 1/8 NPT, 1/4 NPT, 3/8 NP, 1/2 NPT, 3/4 NPT, 1 "NPT itd.
Material: ogljikovo jeklo, nerjavno jeklo ali bakrene zlitine

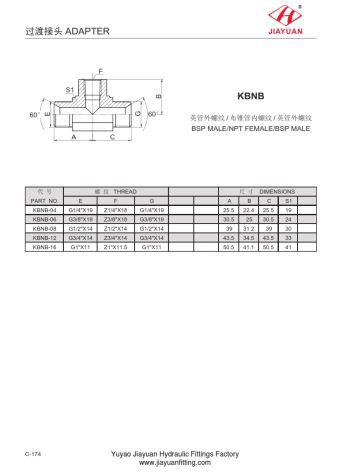

Oblika adapterjev za pritrditev NPT: naravnost, komolec, Tee, križ, reduktor itd.
Prilagodljivi adapterji NPT za vrtljivo vgradnjo, metrični adapter, bspp adapter, sae adapter itd.
2OU4-OG 45 ° IZPOLNITE SAE O-RING BOSS L-SERIES ISO11926-3 / NPSM FEMALE 60 ° CONE dimenzije adapterja:
PA RT N O. | T HR EA D | O- RING | DIM E N S I O NS | ||||||
E | F | E | A | B | S 1 | S 2 | S 3 | ||
2 O U4 - 04 - 02 O G | 7/16 " X 20 | 1/8 " X 27 | O 904 | 24 | 3.5 | 11 | 15 | 17 | |
2 O U4 - 04 O G | 7/16 " X 20 | 1/4 " X 18 | O 904 | 24 | 4.6 | 11 | 19 | 19 | |
2 O U4 - 04 - 06 O G | 7/16 " X 20 | 3/8 " X 18 | O 904 | 23.5 | 6 | 14 | 22 | 22 | |
2 O U4 - 06 - 04 O G | 9/16 " X 18 | 1/4 " X 18 | O 906 | 27.5 | 4.6 | 14 | 19 | 19 | |
2 O U4 - 06 O G | 9/16 " X 18 | 3/8 " X 18 | O 906 | 27.5 | 6 | 14 | 22 | 22 | |
2 O U4 - 06 - 08 O G | 9/16 " X 18 | 1/2 " X 14 | O 906 | 30 | 7.5 | 19 | 27 | 19 | |
2 O U4 - 08 - 06 O G | 3/4 " X 16 | 3/8 " X 18 | O 908 | 31.5 | 6 | 19 | 22 | 22 | |
2 O U4 - 08 O G | 3/4 " X 16 | 1/2 " X 14 | O 908 | 31.5 | 7.5 | 19 | 27 | 27 | |
2 O U4 - 08 - 12 O G | 3/4 " X 16 | 3/4 " X 14 | O 908 | 33.5 | 8.9 | 24 | 32 | 32 | |
2 O U4 - 10 - 08 O G | 7/8 " X 14 | 1/2 " X 14 | O 910 | 38.5 | 7.5 | 22 | 27 | 27 | |
2 O U4 - 10 - 12 O G | 7/8 " X 14 | 3/4 " X 14 | O 910 | 39 | 8.9 | 24 | 32 | 27 | |
2 O U4 - 12 - 08 O G | 1,1 / 16 " X 12 | 1/2 " X 14 | O 912 | 43.5 | 7.5 | 27 | 27 | 32 | |
2 O U4 - 12 O G | 1,1 / 16 " X 12 | 3/4 " X 14 | O 912 | 43.5 | 8.9 | 27 | 32 | 32 | |
2 O U4 - 12 - 16 O G | 1,1 / 16 " X 12 | 1 " X 11.5 | O 912 | 44.5 | 10.5 | 30 | 41 | 32 | |
2 O U4 - 16 - 12 O G | 1,5 / 16 " X 12 | 3/4 " X 14 | O 916 | 45.5 | 8.9 | 33 | 32 | 41 | |
2 O U4 - 16 O G | 1,5 / 16 " X 12 | 1 " X 11.5 | O 916 | 45.5 | 10.5 | 33 | 41 | 41 | |
2 O U4 - 16 - 20 O G | 1,5 / 16 " X 12 | 1,1 / 4 " X 11.5 | O 916 | 48 | 11.2 | 41 | 50 | 41 | |
2 O U4 - 20 - 16 O G | 1,5 / 8 " X 12 | 1 " X 11.5 | O 920 | 48 | 10.5 | 41 | 41 | 50 | |
2 O U4 - 20 O G | 1,5 / 8 " X 12 | 1,1 / 4 " X 11.5 | O 920 | 48 | 11.2 | 41 | 50 | 50 | |
